Listing ID#10150228
ModelHZS25 to HZS75
CategoryFaucets, Mixers & Taps

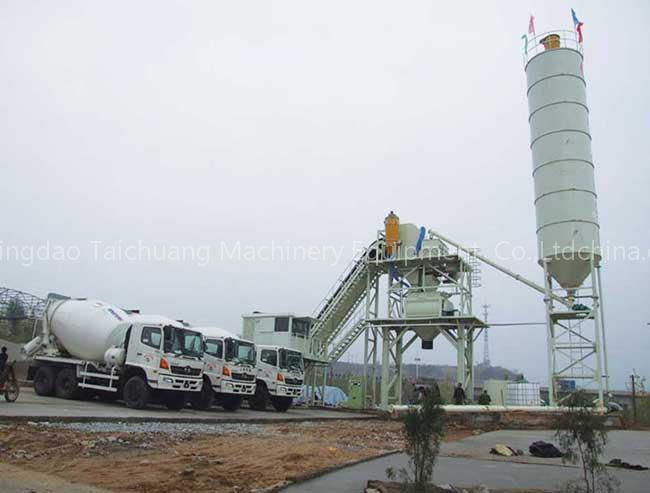

mini concrete mixing plant
Specifications
- Brand
- TCME
- Origin
- China
Quick answer
mini concrete mixing plant is a Faucets, Mixers & Taps product. Key specs — Brand: TCME; Origin: China.
Product Description
mini concrete mixing plant
| Model | HZS25 | HZN25 | HZS35 | HZN35 | HZS50 | HZN50 | HZS75 | HZN75 |
| Capacity(m3/h) | 25 | 25 | 35 | 35 | 50 | 50 | 75 | 75 |
| Mixer | JS500 | JN500 | JS750 | JN750 | JS1000 | JN1000 | JS1500 | JN1500 |
| Batching System | PLD800 | PLD800 | PLD1200 | PLD1200 | PLD1600 | PLD1600 | PLD2400 | PLD2400 |
| Discharging Height(mm) | 1600(3800) | 1600(3800) | 1600(3800) | 1600(3800) | 3800 | 3800 | 3800 | 3800 |
| Max. Aggregate Size(mm) | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| Automatic Circular Period(s) | 72 | 72 | 72 | 72 | 72 | 72 | 72 | 72 |
| Measuring Accuracy of Aggregate | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Measuring Accuracy of Cement | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Measuring Accuracy of Water | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Measuring Accuracy of Additive | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
