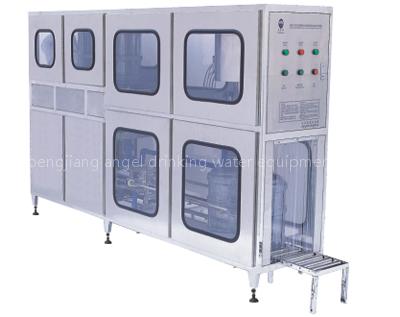

mineral water bottle washing filling capping machine

1.Bottle washing/rinsing part:

Rinsing bottles inside with sterilizing liquid, germless water and pure water;

Number of washing heads: 12

Production capacity : 1000-2000B/H (take 500ml PET bottle as sample)

Applicable bottles height :56-100mm

Bottles height :160-310mm

Main machine power 0.75KW

2.Filling Part

Fully-automatic filling pure water into bottles, controlled by PLC

Number of bottle filling :12

Bottleneck inner diameter :15-25mm

Bottle bodys outer diameter: 55-95

Bottles height : 160-310mm

Production capacity: 1000-2000B/H (base 500ML bottle )

Speed-adjusting electromotor: 0.75kw 125-1250r/min

Speed down electromotor : WHT100-50VIII

Net weight : 1000KG G.W. 1250KG

3.Capping Part

Fully-automatic covering and pressing caps on bottles

Electromotor s power :0.75KW

Production capacity: 1000-2000B/H

Bottle s diameter : 56-100mm

The whorl of bottlenecks diameter: 27mm

Theftproof caps size: 28*15mm(inside size)

N.W : 600KG G.W. : 650KG
