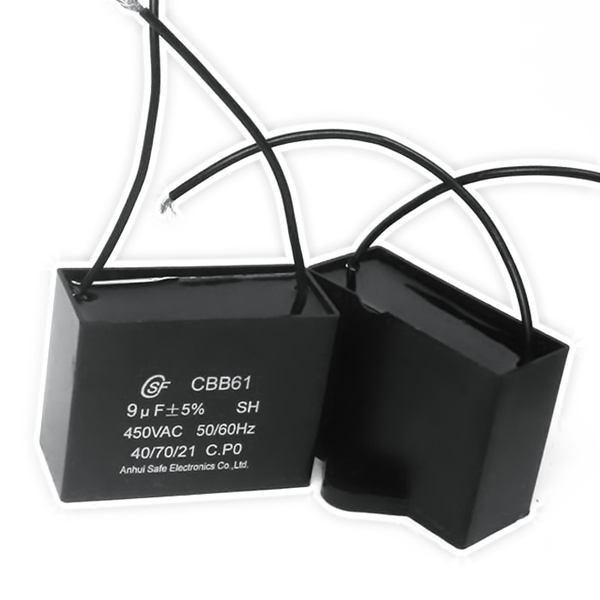

metallized film CBB61 running capacitor
Specifications
- Brand
- SaiFu/CSF/OEM
- Origin
- China
- Certifications
- ISO9001 UL CE
- MOQ
- 20pcs
- Packaging
- through hole,with carton
- Price Term
- FOB CIF CNF
- Payment Term
- T/T,LC,West Union
- Supply Ability
- 10000pcs/day
- Delivery Time
- 3~7days
- Loading Ports
- Shanghai/Ningbo
metallized film CBB61 running capacitor is a Passive Components product. Key specs — Brand: SaiFu/CSF/OEM; Origin: China; Certifications: ISO9001 UL CE; MOQ: 20pcs.
Product Description
Detailed Product Description 1.insulation resistance 2.self healing capacitor 3.low dissipation capacitor 4.capacitor with explosion proof structure
Detailed informaton: Features: Adopt zinc aluminum edge thickening metalized polypropylene film or reticular metalized polypropylene film as dielectric, safety flame retardant epoxy resin infusion and flame retardant square ABS plastic shuck encapsulation. Because of its small volume, electric performance is stable, safe and reliable, long-lived characteristics.
Application: Metallic polypropylene film capacitors can be used for the start and running of 50Hz / 60Hz AC (alternating current) single-phase asynchronous motors, pumps, wind machines and washing machines. They also can be used for the no-power equalization of lamps to improve the power.
.Capacitance range: 1uF~16uF .Rated voltage: 200VAC-450VAC .Climate category: 40/70/21, 40/85/21 .Capacity deviation: +/-5% .Insulation resistance: >=3000s .Dissipation factor: tgδ
