Listing ID#10063727
ModelRHSGV001
CategoryValves
Quick answer
metal sealed flanged gate valve is a Valves product. Key specs — Origin: China.
Product Description

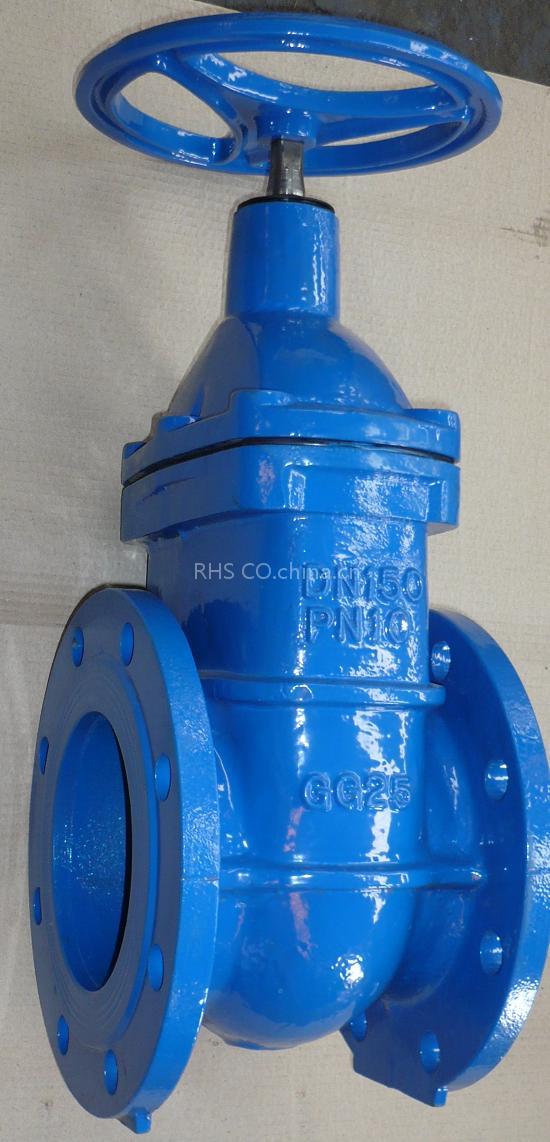

metal sealed gate valve
Handwheel operated ,Cast Iron body(FBE coated internally/externally)
Mani Material:
| Item | Name | Material |
| 1 | Body | ASTM A126B |
| 2 | Seat Ring | Bronze/Brass/Sainless Steel |
| 3 | Wedge Ring | Bronze/Brass/Sainless Steel |
| 4 | Wedge | ASTM A126B |
| 5 | Stem | AISI 420 |
| 6 | Bonnet Gasket | Graphite |
| 7 | Bonnet | ASTM A126B |
| 8 | Packing | Graphite |
| 9 | Stem Nut | Brass |
| Features: | |||||
| ·Bolt Bonnet | |||||
| ·Solid wedge | |||||
| ·Graphite packing | |||||
| ·Clockwise closing direction | |||||
| ·Seat Rings are pressed into wedge and body | |||||
| ·Product color:Blue RAL 5017 | |||||
| ·Maximun temperature 150°C | |||||
| Technical Specification | |||||
| ·Design:MSS SP-70 | |||||
| ·Face to face:ANSI B16.10 | |||||
| ·Flanges:ANSI B16.1 | |||||
| ·Hydraulic test to MSS SP-70 | |||||
| Seat Test Pressure:220 Psi | |||||
| Shell Test Pressure:350 Psi |
