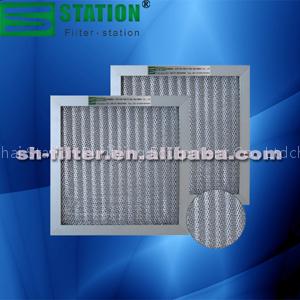

metal filter

 Washable for repeated use  Low initial pressure drop Robust construction High temperature resistanceApplications … coarse particle filtrationType … metal mesh filter panelsFrame … galvanized steel /AluminumFilter media … metal meshGrids … galvanized steel /Aluminum diamond meshGasket … noneEN779 class … G2Average arrestance … 65 to 70% (ASHRAE 52.1.1992)EUROVENT 4/5 class … EU2Final pressure drop … ( recommended ) 150 Pa – (maximum ) 250PaMaximum air flow rate … 125% of nominal air flow rateMax. operating temperature … 250℃ Installation … holding frames type CT 10/ 20/ 30Type Dimensions Filtering surface(m2) Rated air flow (m3/h) Initial pressure drop(Pa) Height(mm) Width(mm) Depth(mm) FM 287 592 21 0.17 850 15FM 400 500 21 0.20 1000 15FM 400 625 21 0.25 1250 15FM 500 500 21 0.25 1520 15FM 500 625 21 0.31 1570 15FM 592 592 21 0.35 1800 15FM 287 592 45 0.17 850 25FM 400 500 45 0.20 1000 25FM 500 500 45 0.25 1250 25FM 592 592 45 0.35 1800 25OTHER SIZES: ON REQUESTOTHER MATERIALS: ON REQUEST
