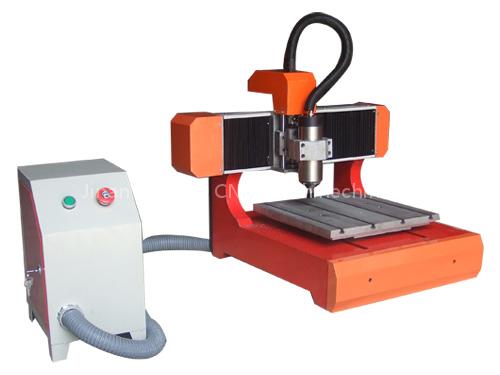

Name: metal cnc router
SKU: QL-3030

Product Description

Product Features:

German Ball Screw Nut and imported Guide;

Broken-point memory ensures the continuity of work when inciddent happens;

Save of many processed points;

Gantry movement ensures the undeformation after a long-time work as well as a higher accuracy;

High power cutting of the Metal CNC Router ensures the smoothness and clearness of the processed metal;

Wide range of use: Architecture model, school, government departments and enterprises

Standard Configurations	Options
Lathe Bed with aluminum cast table	2.2KW Dust Collector
Three axis imported with round guides and double ball screw nuts
NCSTUDIO system
800W water-cooling transducer motor
Leadshine driver

Technical Data
X Y Working Area	300mm*300mm
Z Working Area	100mm
Table Size	380mm*380mm
Positioning Accuracy at Work	0.02/300mm
Repositioning Accuracy	0.01mm
X Y Verticality	0.025/300mm
Motor Power	800w
Spindle Speed	6000-24000rpm
Command Code	G Code.u00.mmg*.plt
Working Software	Windows98/2000/xp
Max. Carving Rate	3000mm/min
Working Voltage	AC220V/50HZ
Spindle Power	1.5kw
Motor	Stepper
