Listing ID#10210252
ModelLWS-H-350T
CategoryBusiness Services
Quick answer
melamine forming machine is a Business Services product. Key specs — Brand: LIWEI; Origin: CHINA.
Product Description

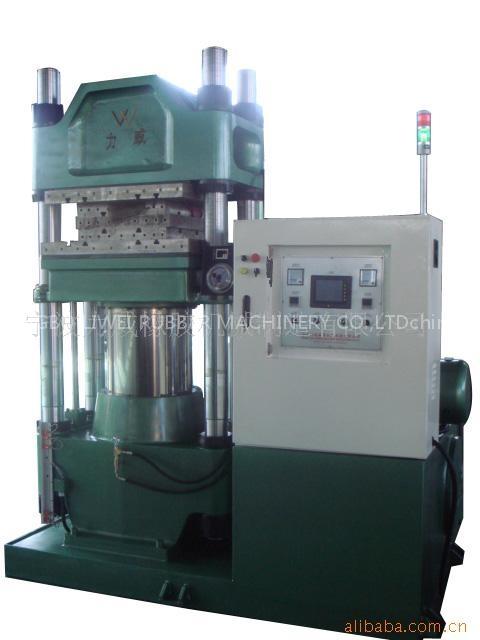

melamine forming machine
technical parameter for LWS-H-350T
melamine forming machine is designed to make various melamine dinnerwares and tablewares such as melamine spoon, bowl, plate, dishware and so on.
technical parameter for LWS-H-350T
CLAMPING FORCE | 350 TON |
MAX CLAMPING STROKE | 450cm |
SYSTEM PRESSURE | 21Mpa |
DIA OF PLUNGER | Ñ„460 |
Daylight opening(mm) | 500mm |
HEATING POWER | 36.6KW |
HEATER PLATEN SIZE | UPPER: 760mm×780mm LOWER:760mm×840mm |
OIL TANK CAPACITY | 700L |
MAIN MOTOR POWER | 11KW |
WEIGHT | 7.5T |
SPECIFICATIONS OF 4 COLUMNS | Ñ„120×L2180 |
CAPACITY OF COOLING WATER | (28~30℃)125L/min |
EXTERNAL DIMENSIONS | L2250MM×W1704MM×H2770MM |
