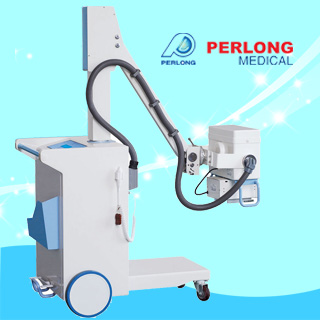

medical x ray machine PLX101D

X ray machine

small mobile X ray unit

This x ray machine is a kind of mobile medical equipment Medical high frequency x ray equipment PLX101D

x ray machine

mobile x ray machine

High Frequency Mobile X-ray machine is also called x ray equipment.

The mobile x ray machine is a kind of high frequency x ray machine.

This mobile x ray machine can be used outdoor with a back-up battery .

Technical parameters of mobile x ray machine

Power Output 5.0KW Frequency 40kHZ mAs 100mA X-ray Tube Fixed anode Operation Method Wire/Wireless control others With a back-up battery.

Usage of mobile x ray machine

This mobile x ray system is combined with high-frequency X-ray photography diagnostic equipment, which is used in radiology, orthopedics, wards, emergency rooms, operating rooms, and ICU, etc.The mobile x ray machine is a mobile diagnostic equipment which can make radiography on human body, such as head, limbs, chest and spine.

The machine is especially suitable for photography without power supply, such as special outdoor environment and emergent incidents.

Features of mobile x ray machine

1. Use a assembly high-frequency high-voltage generator, kV closed-loop control and mAs digital closed-loop control technology, microprocessor Real-time control, ensure dose accuracy and repeatability.

2. kV,mAs ,two buttons adjustment, LCD display, parameter memory.

3. With 50 preset anatomy programs, and parameters can be modified by the user.

4. With high voltage protection, tube over-current protection, output overload protection function, more secure and reliable.

5. The structural design of ergonomics, simple and easy to operate.

6. Use special high-quality battery as the machine power supply, once it is fully charged, about taking 200 pieces of radiology photography on the normal expose, avoid the fluctuations in net power supply to impact on the film effectiveness, the photography quality is more stable and reliable.
