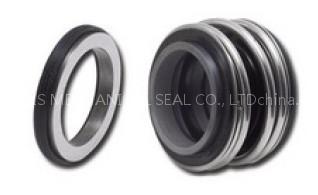

mechanical seals is a Business Services product. Key specs — Origin: China (Mainland).
Product Description
Mediums:
Water, oil, middle corrosion liquids and other mediums including solid granule.
Water, oil, middle corrosion liquids and other mediums including solid granule.
Pressure:
Up to 15bar or 218psi
Speed:
Up to 10m/s or 33ft/s
Temperature:
-40 Degree Celsius to 200 Degree Celsius or -40º F to 390º F.
Depending on materials used.
Design features:
Elastomeric bellows seal design including kinds of stationary ring, complying with DIN24960, ISO3069
Material
Seal face/Primary ring:
Carbon graphite, silicon carbide, tungsten carbide.
Seat/Mating ring:
Alumina ceramic, silicon carbide, tungsten carbide.
Secondary seals:
NBR, Viton, EPDM, Silicone
Spring and others:
SUS304. SUS316 SUS316L etc.
Seats/Mating Ring
C60, C4, C606, C50, C6, C9
