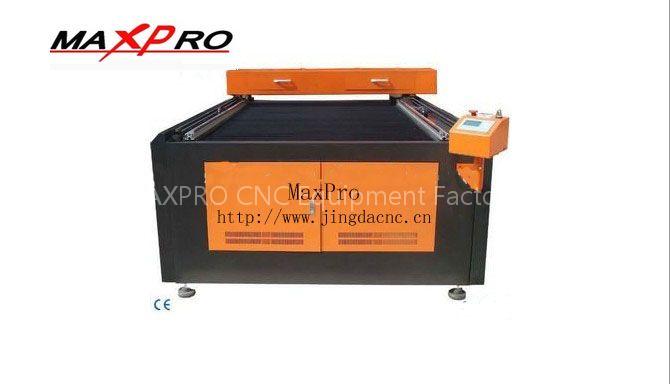

maxpro1318 laser cutting bed

Name:

mp1318

Processing area

1300mm*1800mm (4.3feet*6feet)

Laser power

60W,80W,100W,130W,150W

Laser type:

Co2 glass laser tube

Software:

Laser cut 5.3

Dimension:

2.6mm*2m*1.3m

Engraving speed

1-6000mm/min

Cutting speed

1-1000mm/min

Cutting thickness

0-25mm acrylic (others determined by materials)

Resolution ratio

≤0.0125mm

Position system:

Red dot

Interface:

USB

Minimum shaping character

letter 0.5mm, Chinese 0.5mm

Support graphic format

DST, PLT, BMP, DXF

Gross power

1000W

Driving mode:

DC0.8A 24V stepper motor

Cooling mode:

Circulation water cooling

Working voltage:

AC220V/50HZ or 110V/60HZ or depend on customer

Operating temperature

0-45C

Operating humidity:

5-95%

Packing:

wooden box

Guarantee time:

1 year, laser tube 3 months

Option:

Rotary attachment for column materials

Operation:

Video to tell customer how to operate the machine
