mattress tape edge machine is a Other Farm Machines product. Key specs — Origin: China (Mainland).
Product Description

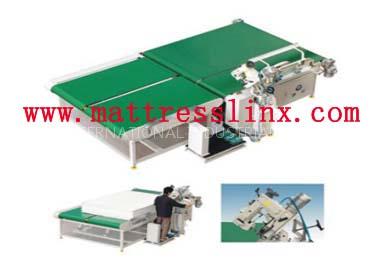

Description: This mattress machine is maninly used for taping edge of mattress panel and soft cushion. This tape edge machine bears the following features: 1. Rather than moving around, the head is fixed but can move up and down to adapt to different height of mattress. 2. The angle of the head is adjustable. 3.
When working, the conveying belt drives the mattress to proceed. When one side is finished, this mattress manchine can turn 90° automatically to start taping the next side. The taping of the corner is finished while turning. When the top four sides are completed, the machine can turn the mattress over for taping the other four sides.
This manchine needs only one operator and there is no need for him to move around or overturn the mattress manually.
Thus higher efficiency and less labor is realized.Main Technical Parameters: Mattress Thickness:(150-450)mm Head Lifting Range: (125-450)mm Table Size: 2000×3950×900mm Machine Size: 2380×1830×1650mm Power Supply: 3-Phase, 380V 50Hz Total Power: 4kw Air Supply: (0.7-1.0)Mpa Tital Weight: 1300Kg Capacity: 18units/h
