marine self-suction vertical crushing pump

marine self-suction vertical crushing pump

are leading supplier of marine pumps,such as marine diesel emergency fire pump,vortex marine water pump,marine centrifugal water pump etc.Pls contact us for more details.

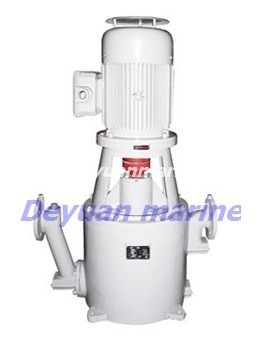

CLF type marine self-suction vertical crushing pump is driven by marine motor.This pump features in integration of self suction,cutting and non-clogging drain,able to cut into pieces the long fibers,paper belts and other foreign substances in the sewage before draining them out.Through unique design of the pump body and impeller flow channel,the pump is enabled of self-suction function,as the general clear water pump on which it is not necessary to install base valve.

Widely used in light industry,paper making,textile,food,chemicals,power industry,mining,boats,urban sewage drainage and aquatic culture,the CLF type marine self-suction vertical crushing pump is the most ideal pump at present in China to deliver the medium containing solid particles,fibers,pulps and mixed suspensions.

Type Capacity

(m3/h) Head

(m) Speed

(r/min) NPSHR

(m) Motor power(kw) Weight(kg)

40CLF-3 10 40 2900 5 5.5 220

40CLF-3A 10 30 2900 5 4 182
