Listing ID#10060460
Model16A,40A,MB170,HC65,135,HC138
CategorySpeed Reducers
Quick answer

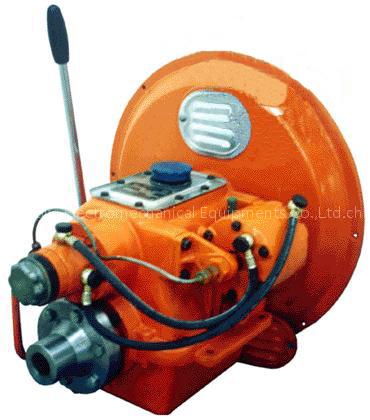

marine gearbox is a Speed Reducers product. Key specs — Brand: Kaima; Origin: China.
Product Description
Product parameter:
| Model | Rated speed (rpm) | Rated transmission capacity(kw/rpm) | Reduction ratio | Dimension (mm) | Net weight(kg) |
| 16A | 1000-2000 | 0.012 | 2.07/2.48/2.95/ 3.35/3.82 | 422*325*563 | 84 |
| 40A | 750-2000 | 0.03 | 2.06/2.96 | 414*610*620 | 225 |
| MB170 | 1000-2500 | 0.039 | 1.97/2.52/3.04/ 3.54/3.96 | 485*610*656 | 240 |
| HC65 | 1000-2500 | 0.048 | 1.53/2.03/2.50 | 311*460*544 | 130 |
| 135 | 1000-2000 | 0.1 | 2.03/2.59/3.04/ 3.62/4.11 | 578*744*830 | 470 |
| HC138 | 1000-2500 | 0.11 | 2.52/3.0/3.57/ 4.05/4.45 | 520*792*760 | 360 |
