marine female thread bronze globe valve
Specifications
- Origin
- china
- Price Term
- EX-Work
- Payment Term
- T/T
marine female thread bronze globe valve is a Industrial Power Supplies product. Key specs — Origin: china; Price Term: EX-Work; Payment Term: T/T.
Product Description

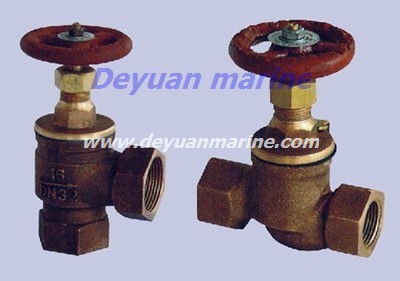

marine female thread bronze globe valve
are leading supplier of different type of marine valve,we can offer marine gate valve,marine globe valve,marine butterfly valve,marine check valve etc with GB standard,JIS standard,DIN standard,API、ANSI,BS standard etc.Pls contact us for more details
Type Name Nominal pressure(Mpa） Nominal Diameter（mm)
A Through shut-off valve 1.6 6~50
B Through shut-off valve 15~50
DN(mm) Structure dimension Thread joint Hand wheel
L H H1 D1 S L1 Do S1
A type B type A type B type
6 65 -- 86 -- -- G 19 10 50 6
10 75 -- 88 -- -- G 22 12 50 6
15 84 35 100 125 35 G 27 14 50 6
20 95 40 112 143 40 G 36 16 65 7
25 110 45 125 158 45 G 41 18 80 8
32 130 54 139 176 54 G 50 20 80 8
40 150 65 155 220 65 G 60 22 120 11
50 180 80 175 283 80 G 70 24 120 11
