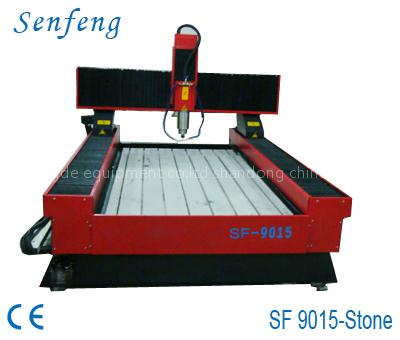

marble engraving cnc router sf9015

1,The three axis adopt the strait line contrail, running stable and with high precision.

2,All the machine adopts the steel structure seamless jointing, the steel quality is good and without distortion, the backof the working table is steel board, the intention is big and the steel quality is good.

3,Invariable power mainဠaxis engine, the cutting is strOng, the power is high.

4,AdopÉ´s the U disc embedded all offlioe control system, making the working more convenient and freely.

Specifications of SF-90 series marble engraving machine

Engraving area: 900×1500mm

Z axis journey:200mm

Table size:1480×2200mm

The highest running speed: 20m/min

The highest engraving speed: 10m/min

Resolution:0.005mm

Repeat orientation precision: The 0.05mm

Engraving code Code:*.u00*.mmg*.plt

Software environment: windows98/2000/xp

Power (without main axis): 2000w

Working voltage: AC380V/50Hz

Power of the main axis: 2.2-4.4KW(invariable power)

Main axis rotate speed: 0-24000rpm/min

Working method:Stepper
