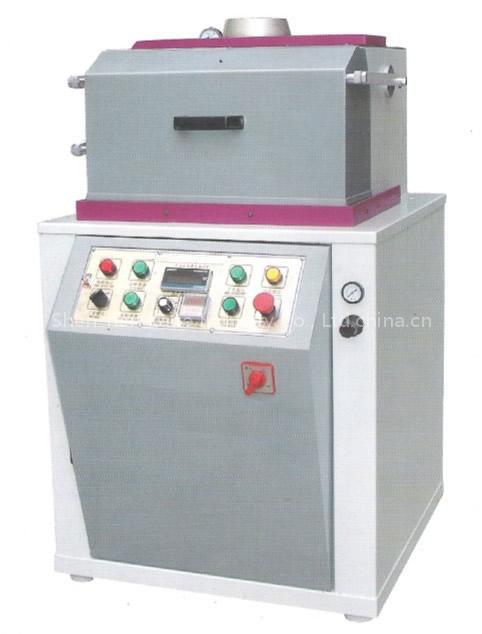

manual vacuum centrifugal casting machine

It is used to produce procesion casted buckles and accessories for the leather industry and garment industry, imitation jewellery, promotion gifts, medal, and figurines etc from zinc alloy or tin alloy.

Features:

1. Efficient vacuum pump, centrifugal casting cycle shorted, cooling faster, rubber mold working life prolonged
2. Speed display.
3. timer for centrifugal time setting.
4. digital counter
5. Adopt DC speed regulation in range 50-1400 RPM for more processing options
6. Safety protection of the centrifugation area
7. Electronic emergency brake system
8. Easy operated and maintained.

Model VMC12 VMC14 VMC16
Mould diameter max 12" 14" 16"
Mould Thickness 0-120mm
Pressure 0-7KG
Power 0.75KW 0.75Kw 1.5Kw
Speed 50-1400rpm
