male thread globe valve
Specifications
- Origin
- china
- Price Term
- EX-Work
- Payment Term
- T/T
male thread globe valve is a Industrial Power Supplies product. Key specs — Origin: china; Price Term: EX-Work; Payment Term: T/T.
Product Description

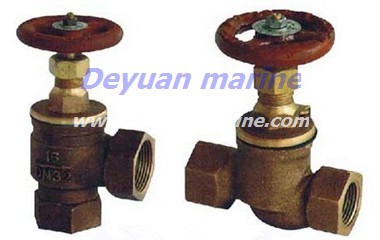

Marine low pressure male thread bronze globe valve
are leading supplier of different type of marine valve,we can offer marine gate valve,marine globe valve,marine butterfly valve,marine check valve etc with GB standard,JIS standard,DIN standard,API、ANSI,BS standard etc.Pls contact us for more details.
Nominal pressure(Mpa) Nominal Diameter(mm) Applicable medium
1.6 6~32 Sea water,fresh water,lubricanting oil,fuel oil,t≤250℃ steam
Parts name material
name marks
Body/cover/disc Cast tin bronze ZCuSn10Zn2
Stem Stainless steel DN6,10:2Cr13
Aluminum bronze DN15~32,CuAl9Mn2
DN6,10Dimensions
(mm) Structure dimension Thread joint Hand wheel Lift
Range
m Weight
(kg)
L H≈ H1 A B
A type B
type A
type B
type B
type D D1 D2 L0 L1 D0 S
6 78 34 90 77 32 M18*1.5 15.8 9 13 2 50 6 5 0.34 0.28
10 80 34 90 78 32 M22*1.5 19.8 13 14 2 50 6 5 0.40 0.32
