magnetic tensioner

Specifications

Brand: CL
Origin: Dongguang

Request Quote

Quick answer

magnetic tensioner is a Insulation Materials & Elements product. Key specs — Brand: CL; Origin: Dongguang.

Product Description

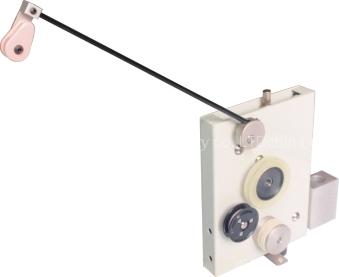

Magnetic Tensioner:by using permanent magnet,tension is generated to the damp non-contact mechanism design provides stable,consistence and precision tension to the wire.Excellence for both high and normal speed winding.

Model Applied wire diamiter(mm) Tension scope(cn) HT-02A φ0.04_φ0.08 10g_50 g HT-03A φ0.09_φ0.15 40g_150 g HT-04A φ0.16_φ0.50 160g_1200 g HT-05A φ0.40_φ1.00 200g_2000g
