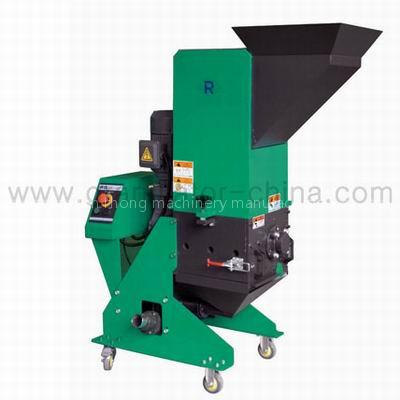

low speed granulator

The low-speed beside-the-press granulators of RG18 series often work with stainless steel dryer and set beside plastics molding machine to collect the sprues and scraps produced while injection regrinding is then conveyed by the blower to the mixing chamber of hopper dryer with vigin material proportionally and melt in the plastic-melting chamber.Therefore,the waste materials are reclaimed right before their characteristics changes,so as to keep the quality,lower waste and production cost. It is also applied to crushing various shorts,reuse and semi-finished products made of plastic and rubber materials such as soft PC,polycarbonate,nylon,ABS and so on in sheet,twig or mesh shapes.
Features:
1. Low-speed rotation, high torque, with stronger breaking capability.
2. Driven directly by speed reducer motor, high transmission efficiency so as to save power
3. Special designed rotary knives to achieve lowest energy consumption and higher cutting efficiency,no need to adjust gap after sharpening. It is easy and quick.
4. Four-edged fixed blades and durable use.
5. Blower automatic conveying together with instant reclaiming system so as to reduce man power and pollution on raw material. High pressure air conveyor is optional to use.
6. Overload protection on motor and other safety protection devices.
7. Transparent window design on cutting chamber so as to know material condition anytime
8. European design with compact structure, room-saving and easy cleanout
9. Equipped with casters so as to move easily.

Technical Specifications:

Please excuse for not note if some specification of products are changed.

Note：
1）“●”is standard allocation，“○”is selection urchase.
2) The max.Granulating quantity depend on the mesh hole diameter and material quality to
be granulated.
3）The machine voltage specification is 3∮，220V/380V，50/voltage can be changed as you require.
