Listing ID#10038717
Model05BQ289-01
CategoryElectrical Equipment & Supplies

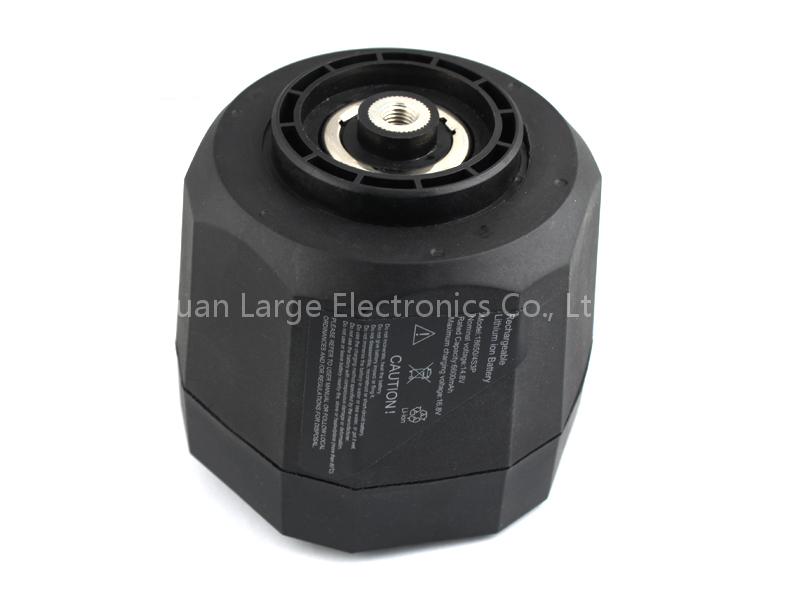

lithium-ion battery pack for rechargeable lighting
Specifications
- Origin
- China
Quick answer
lithium-ion battery pack for rechargeable lighting is a Electrical Equipment & Supplies product. Key specs — Origin: China.
Product Description
1. Model: 05BQ289-01 2. Combination way: ICR18650-4S3P 3. Norminal voltage: 14.8V 4. Norminal capacity: 6600mAh 5. Stardard continuous discharge current: 0.2C 6. Max continuous discharge current: 1C 7. Working temperature: Charge: 0~45 degrees/discharge: -20~60 degrees 8. Size: MAX 68*71.5*74.5mm 9. Impedance: Less than 240 Omega; ; 10.
PCM: IC-S8254AAF+MOQ-AO4407 11. Over charge protection Voltage: 4.325-4.375V 12. Over discharge protection Voltage: 1.92-2.08V 13. Over current: 16-30A
