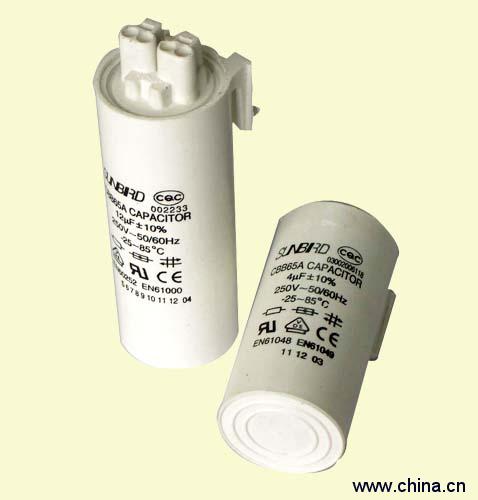

lighting capacitor is a Capacitors product. Key specs — Origin: Afghanistan.
Product Description
This product is characterized by its smallness, long life-span, good self-healing characteristic and safe anti-explosion net as its dielectric layer. It is special for grille lamp, and is ideally energy-saving.
Working Temperature Range | climate types: 40/70/21 |
Rated Voltage Range | 250-450VAC |
Rated Capacitance Range | 3-55uF |
Dissipation Factor | Tan ≤0.002 (50Hz) |
Rated Tolerance of capacitance | 5% 10% |
Testing Voltage | between leading-out ends: 1.75UR 10S no break down |
Insulation resistance | between leading-out ends: 3000 |
Dimension:
Capacitance | Rated Voltage | Spec. | |
D(mm) | H(mm) | ||
3 | 250/400 | 35 | 60 |
4.5 | 250/400 | 35 | 60 |
8 | 250/400 | 35 | 60 |
10 | 250/400 | 35 | 70 |
15 | 250/400 | 40 | 70 |
18 | 250/400 | 40 | 90 |
24 | 250/400 | 40 | 90 |
32 | 250/400 | 45 | 92 |
35 | 250/400 | 45 | 92 |
55 | 250/400 | 50 | 90 |
note:
Special specs are available on request
