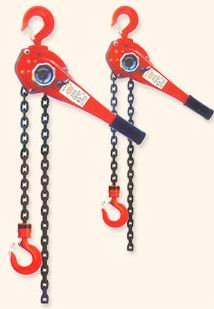

lever block - VT Specificaton & Trade Terms
| Model | VT |
|---|
| Place Of Origin | China |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
contact mail: thqzjx666(AT)yahoo(DOT)com
Model VA0.25 VA0.5 VA0.75 VA1 VA1.5 VA2 VA3 VA6
Capacity (ton) 0.25 0.5 0.75 1 1.5 2 3 6
Standard Lift (m) 1 1.5 1.5 1.5 1.5 1.5 1.5 1.5
Testing Load (t) 0.375 0.75 1.13 1.5 2.25 3 4.5 9
Effor required to Lift max.load (N) * * 140 140 220 220 320 340
Dia.of Load Chain (mm) 4 5 6 6 8 8 10 10
Net.Weight (kg) * * 7 7.5 11 12 21 31
Packing Size(L*W*H) (cm) * * 38*13*17 38*13*17 48*14*20 48*14*20 55.5*18.5*22.5 55.5*20*22.5
Extra Weight per meter extra lift(kg) * * 0.92 0.92 1.6 1.6 2.4 4.8
