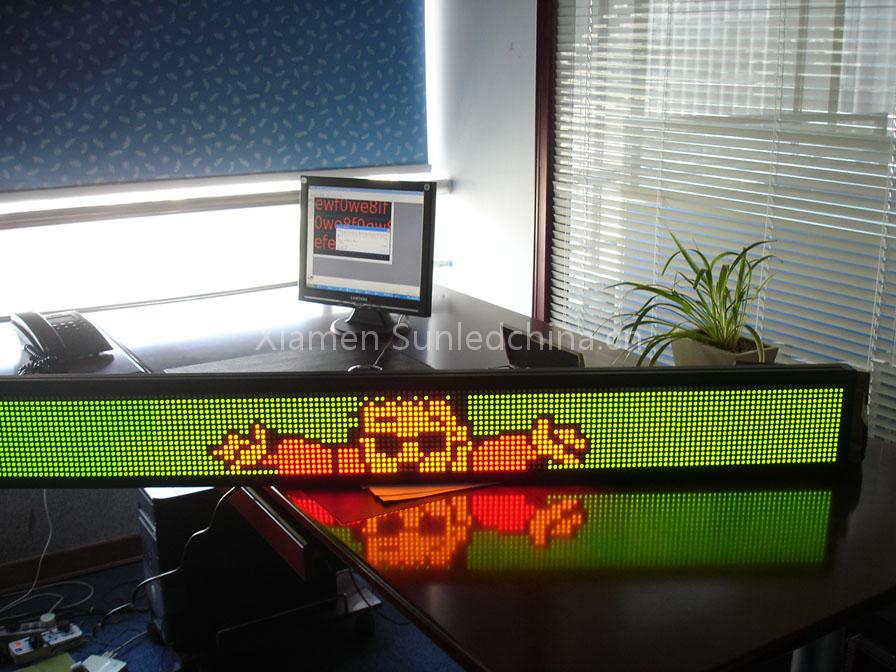

led message sign
Listing ID#10054237
ModelMS-02
CategoryLED Modules

led message sign

Specifications

Origin
CN
Price Term
EXW
Request Quote
Quick answer

led message sign is a LED Modules product. Key specs — Origin: CN; Price Term: EXW.

Product Description

Functions

Display English or European characters, graphic symbol and simple animations
7 Fonts for option, 66 special European characters
25 kinds of display effects, such as Cyclic, Scroll up, Scroll down, Open to Center, Open from
nbsp; Right, Open from left, etc.
Approximately 30000 characters of memory space to store messages, max 7000 characters
nbsp; per message
Built-in real time clock with 12-hour or 24-hour display format
Built-in timer to power on/ power off
30 pre-graphic symbols such as phone, car, house, arrow etc.
8 pre-defined graphic for option, 8 additional user-defined graphic
8 pre-defined phrases and animations such as NO SMOKING+
8 programmable display speeds
8 pause periods from 1-8 seconds
Time-Alarm setting
3 different buzz sound can be added anywhere within the message
Sequencing multiple messages display
Up to 255 units can network via RS232 communication
Password protection
Low consumption
Fixing methods: desk, wall or ceiling
Specifications
Pixel pitch 7.62 mm
Display Color 1. Monochrome: Red, Amber, Blue, Green, or White etc.
2. Two colors: Red, Green, and Amber
Life span 50,000 hours
Communication PC-USB port, RS232 com port, or Infra-red remote control
Viewing Angle 140° for indoor models, 110° for window brightness
Best viewing distance 8 meters
Working Temperature 0°C ~ +70°C
Working Humidity 0% - 95% RH
Power Input 100-240VAC , 60Hz/50Hz
Power consumption 8w ~ 25 w



We have thousands of sizes and shapes for you to choose from, These are just an example of our Programmable LED display Technology products.
