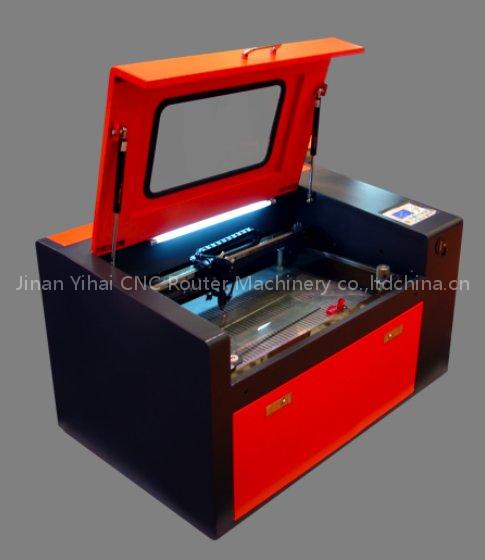

laser machine
Specifications
- Brand
- chixing
- Origin
- china
- Price Term
- FOB
laser machine is a Electronics Production Machinery product. Key specs — Brand: chixing; Origin: china; Price Term: FOB.
Product Description
Laser machine parameter:
Laser power | 50W(optional) |
Laser type | Hermetic CO2 glass tube |
Power supply | AC220±1050 HZ/AC110±10 60 HZ |
Working area | 600mmx400mm |
Max moving speed | 1500mm/s |
Locating precision | <0.01mm |
Min shaping character | Character:3x3mm,letter:2x2mm |
Operating temperature | 5-35 |
Resolution ratio | 4500dpi |
Control configuration | DSP |
Data transfer interface | USB(offline) |
Worktable | Up and down worktable |
System environment | WINDOWS 2000/WINDOWS XP |
Cooling way | Water cooling and protection system |
Graphic format supported | The file which CorelDraw, Photoshop, AutoCAD can identify(BMP, GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG,DXP,PAT,CDT,CLK,DEX,CSL, CMX,AI,WPG,WMF,EMF,CGM,SVG, SVGZ,PCT,FMV,GEM,CMX) |
Compatible software | CorelDraw, AutoCAD |
Cutting thickness | 0-10mm(depends on different material) |
Color separation | Separation of cutting up to 256 colors |
Sloping engraving | Yes, slope can be designed discretionarily |
Cuts of the water supply the protection | yes |
Packing | Plywood case |
Optional parts | High-grade cooling system imported focus lens double-head cylinder rotary attachment irregular rotary attachment servo motor red dot |
Net weight | 95kg |
Machine dimension | 1200x700x1000(mm) |
sample photos:
