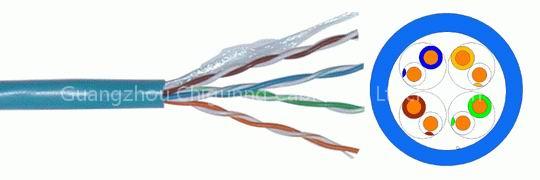

lan cable Cat5e

Rated Temperature: 75 degree
Standard: UL444, TIA/EIA568B. 2, YD/T1019-2001
Conductor: Solid Bare copper
AWG: 24
Insulation: HDPE
Twisted pair Four
Jacket: PVC
Rip cord: Per request

Electrical Characteristic
1.0-100.0MHz Impedance (ohms) 100 ± 15
1.0-350.0MHz Delay Skew (ns/100m) <=45
Pair-to-Ground Capacitance Unbalance (pF/100m) <=330
Max. Conductor DC Resistance 20oC (ohms/km) 93.8
Resistance Unbalance (%) <=5

Application packing
100 Base-T4 305m/ Pull box or
100 Bsdr-TX 305m/ Spool in box
100 VG-AnyLAN
155 Mbps ATM
622 Mbps ATM
