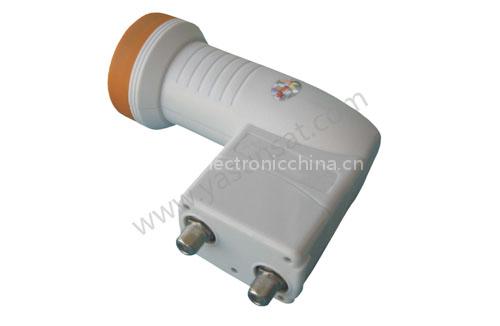

ku twin lnb is a Electric Motorcycles product. Key specs — Origin: china.
Product Description
â—Inputs Frequency Low Band:10.70-11.70GHz High Band:11.70-12.75GHz â—Output Frequency Low Band:950-1950MHz High Band:1100-2150MHz â—Output Vswr 2.0:1(typ.)℃ â—Output Impedance 75Ω â—Output Connector Type F Female â—L.O. Frequency 9.75GHz;10.6GHz â—L.O.
Frequency Stability ±1MHz(Max.)℃ ±3MHz(Max.)℃to+60℃ â—Phase Noise -60dBc/ offset -80dBc/ offset -100dBc/ offset â—Conversion Gain 60dB(typ.) â—Gain Flatness ±3(±0.5dB/27MHz) â—P 1db Gain Compression 5dBm(typ.) â—Noise Figure 0.3dB(typ.) â—Image Rejection 45dB(typ.) â—Band Select Control High Band:22KHz,Low Band:0 Hz â—Polarity Celect Control V:11.5-14.5V DC,H:15.5-22V DC â—Work Current 200mA(Typical)
