key cutting or duplicator machine

Delivery Time:3-7 days with tracking number

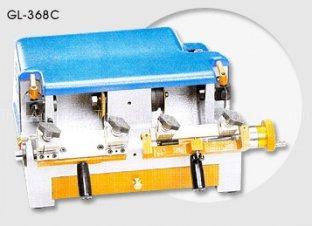

key cutting or duplicator machine  GL-368C

Item No .:j10

Product Weight: 20000.00g

Left and right swing seat tailor twist wheel drive


Two-stage parallel twisted wheel, seat can be individually controlled movement around roll to the right golden twisting round to control the swing seat, silver swing handle controls the left seat.  corner pieces with tungsten steel knife (oblique knife), slot blade (straight blade).

fine-tune the depth scale calibration clear, easily corrected.

butterfly screw with ball bearing device, forcing the tightness strong, flexible operation.

high accuracy, save hours of work, increase efficiency.

Left shaking Seat


Widening the spacing Ke Yi four fixtures required for the system folder the keys up to 120mm and all kinds of double-sided key trench.  a new fixture is vertical guide sleeve to enhance the accuracy of reproduction work. fixtures available stopper piece Groove confirmation copy when no key position of the shoulder. The new design was replicated four more key fixture, to ensure accuracy. the adjustable seat in a prospective tool to protect screws, cutting tools and fixtures to prevent damage to each other. Right Shake Seat upper and lower clamp, 110mm long key can be directly copied and special keys do not have any attachments. Such as: square keys (SOLO) large and small key, semi-circular key (ABLOY) left and right keys to open, handle lock and Iron Cabinet Lock. Specially designed screw balance of 90 degrees. Locking clamps when fixed to a vertical cut, release may be semi-circular, square keys arc cutting. THE specially designed two horizontal motion wheels control the motions of carriages individually, with the golden wheel controlling the right carriage and the small white handle controlling the left one.
