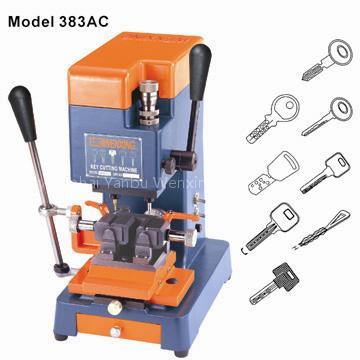

key cutting machine

1) Equipped with guide vertical depth fine adjustment device, this machine is multi-functional with solid structure, perfect function and easy to operate

2) It is convenient to adjust with high accuracy. The vise is of tilting type and it can duplicate level concave, Mul-T lock concave, slanting concave (such as KESO and KABA keys), L-shaped and inside/outside wave shape keys, etc. It is equipped with No.3 vise unit.

3) It is multi-functional for the whole-vise unit, which can be replaced quickly (patented device). The whole process can be finished within just 10 seconds. It can also duplicate cylindrical concave and tubular arched hole keys (the quick replaceable 381AC vises and 382AC vise units)

Technical data:

1. Motor: AC 220V/110V 50/60Hz DC 12V 180W

2. Cutter: HSS No. 0042, No.0043, No.0060Q, No.0060A, No.0060B,

No. 0060, No.0062, No.0090, No.0093, No. 0051

3. Guide: HSS No. 0080Q, No.0080A, No. 0080B, No. 7282, No.7380,

No.0100, No. 0103, No. 0057

4. Dimension: 27*32.6*42.5cm
