juice making machine

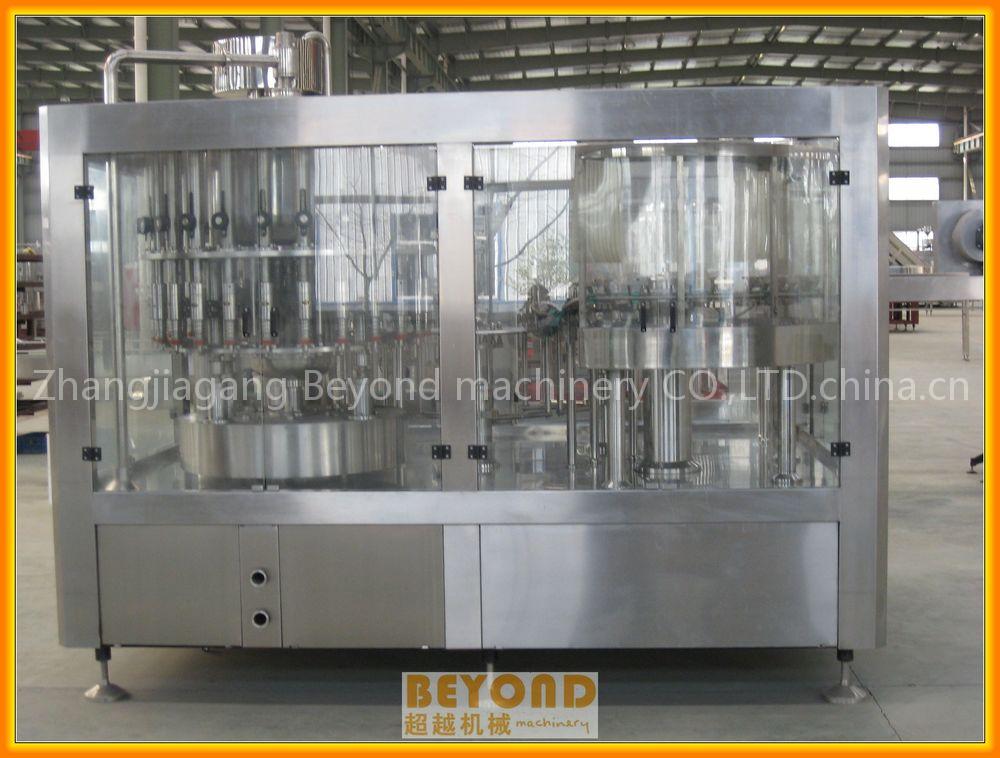

1. The series equipment is used in hot filling and sealing of green tea, black tea, wulong tea and fruit juice drink. The machine integrates washing, filling, capping together. The design is scientific and reasonable. Its appearance is beautiful. Its operation and maintenance is convenient. The automation is high. It is good equipment for choosing hot drink filling machine.

machine is adopt block bottle-neck hanging work state design,and be adopt filling valve rise-drop design; It's be satisfy for 95hereinafter hot filling technology demand; It adopts person-machine interface touch-screen, PLC, transducer etc advanced control technology. It's osculant the drink material parts are adopt the SUS304 stainless steel, The machine main motor, reducer, mostly axletree, pressurize parts and electricity ware element, gas drive element etc are adopt famous international manufacturer products.

Model	CY12-12-6R	CY16-16-6R	CY18-18-6R	CY24-24-8R	CY32-32-8R	CY40-40-10R
Production Capability(b/h)(500ml)	3000	4000	5000	8000-10000	10000-12000	13000-15000
Applicable Bottle Type	(Bottle DiameterØ50- Ø100mm;Height150-320mm;Volume330-1500ml
Applicable Cap Shape	Plastic Screw Cap
Gas Source Pressure(Mpa)	0.6
Gas Consumption(m³/min)	0.2	0.2	0.4	0.4	0.5	0.55
Total Power(kw)	4.6	4.6	5.4	6.4	8.07	9.56
Total Weight(kg)	2500	3200	3800	5200	6500	8000
Dimension(L×W×H)(mm)	2350×1700×2150	2600×1830×2030	2830×2030×2030	3220×2300×2600	3450×2510×2710	3800×2800×2710
