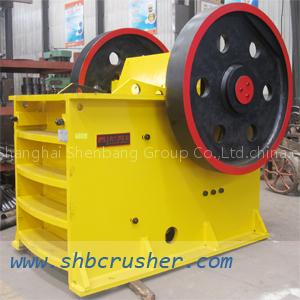

jaw crusher is a Mining Machinery product. Key specs — Origin: shnaghai.
Product Description
Working Principle:
It consists of frame,eccentric shaft,jawstock,toggie plate,cheek plate(up and down),set adjustment,fixed and moveable jaw the toggie plate also play a role of security.
1) This jaw crusher uses motor as its power. Through the motor's wheels, the eccentric shaft is driven by the belt and the belt wheel to make the jawstock move by a regulated track.
2)The angle between the toggie plate and jawstock will become large as the up of the jawstock. This will push the moveable jaw plate towards the fixed jaw plate,which can realize the multi-crushing of the materials.
3)The angle between the toggie plate and jawstock will become small as the down of the jawstock. The moveable jaw plate will leave the jaw plate at the presure of the tension rod and spring ,meanwhile ,the final products will be discharged from the dischargeing opening.
Structure Features:
1.Large crushing ratio
2.Stable performance and low operation cost
3.Simple structure and convenient maintenance
Jaw crusher Technical Data:
| Jaw crusher Specifications: | ||||||
| Model | Feeder Opening (mm) | Setting Adjustment Range(mm) | Max. Feeding Size (mm) | Capacity (t/h) | Motor Power (KW) | Weight (t) |
| PE150×250 | 150×250 | 10-40 | 125 | 1-3 | 5.5 | 1.5 |
| PE250×400 | 400×250 | 20-50 | 200 | 5-25 | 15 | 2.4 |
| PE400×600 | 600×400 | 40-100 | 350 | 15-60 | 30-37 | 7 |
| PE500×750 | 500×750 | 50-100 | 425 | 40-110 | 45-55 | 12 |
| PE600×900 | 900×600 | 65-160 | 480 | 90-180 | 55-75 | 17 |
| PE750×1060 | 1060×750 | 80-140 | 630 | 110-320 | 90-110 | 29 |
| PE900×1200 | 900×1200 | 95-165 | 750 | 220-450 | 110-132 | 52 |
| PE1000×1200 | 1000×1200 | 195-265 | 850 | 315-550 | 110 | 57 |
| PE1200x1500 | 1200x1500 | 150-300 | 950 | 400-850 | 220 | 82.5 |
| PEX150×750 | 150x750 | 18-48 | 125 | 5-16 | 15 | 3.8 |
| PEX250×750 | 750×250 | 25-60 | 210 | 15-30 | 22-30 | 5 |
| PEX250×1000 | 1000×250 | 25-60 | 210 | 15-50 | 30-37 | 7 |
| PEX250×1200 | 1200×250 | 25-60 | 210 | 20-60 | 37-45 | 8.5 |
| PEX300x1300 | 300x1300 | 25-60 | 250 | 20-120 | 75 | 11 |
If there is change of the above specification, it subjects to the newest products' specifications.
