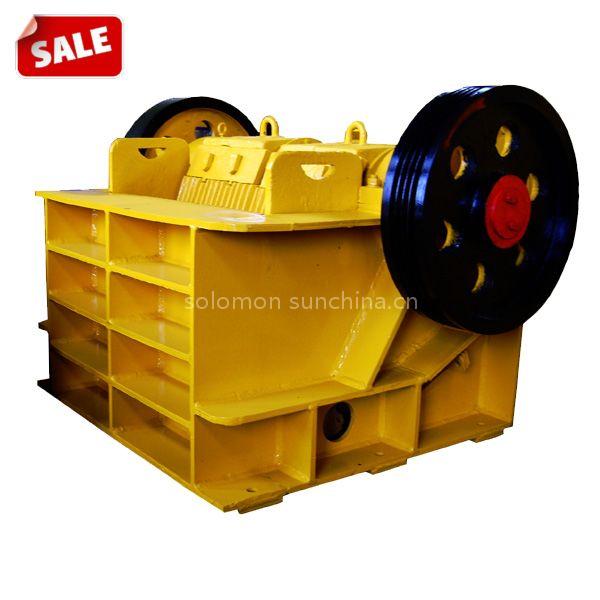

jaw crusher is a Business Services product. Key specs — Origin: china; Price Term: FOB.
Product Description
This series of products have many advantages ,such as big reduction ratio, equal product granularity, simple structure, reliable working condition, convenient repair and econimicial operation ,which are widely used for mine, smelting,buildingmaterial, road, railway, irrigation work, chemical and material with compression strength no more than 320mpa
Model | Technical Data | Motor power (kw) | |||
Max feeding size (mm) | Adjusting range of discharge open(mm) | Capacity(m3/h) | Spindle(r/min) | ||
PE150×250 | 125 | 10-40 | 1-3 | 285 | 5.5 |
PE200×300 | 165 | 20-70 | 2-8 | 285 | 7.5 |
PE250×400 | 210 | 20-80 | 5-20 | 310 | 18.5 |
PE400×600 | 340 | 40-90 | 10-40 | 300 | 30 |
PE500×750 | 425 | 50-100 | 34-68 | 275 | 55 |
PE500×900 | 425 | 50-100 | 50-100 | 255 | 55 |
PE600×900 | 480 | 75-200 | 32-120 | 250 | 75 |
PE600×1200 | 480 | 75-200 | 60-180 | 250 | 75 |
PE750×1060 | 630 | 80-200 | 80-200 | 250 | 90 |
PE900×1200 | 750 | 100-200 | 90-250 | 250 | 110 |
PEx150×500 | 125 | 10-40 | 5-12 | 300 | 11 |
