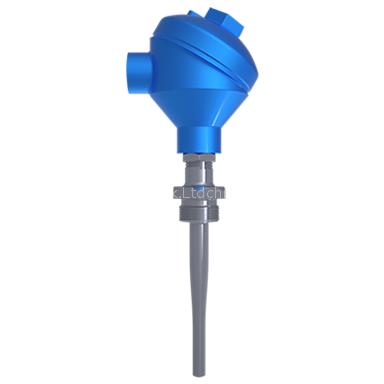

integrated RTD

Integrated RTD are especially suited for applications where the metal sensor tip is fitted directly into drilled holes, e.g. in machine parts, in turbine thrust bearing,or directly into the process, i.e. for all applications without chemically-aggressive media and without end face RTD mounting into a drilled holes, a spring-loaded compres-sion fitting is provided since only this can press the sensor tip to the bottom of the drilled holes. Fastening elements such as threads, union nuts,flange.

Special features:

1.Application ranges from -200 degrees to +600 degrees

2.For insertion, screw-in with optional process connection

3.Cable material Teflon,silicon,or fibreglass

Technical Data:

Sensor method of connection

2-wire The lead resistance compounds the error.

3-wire With a cable length of approx. 30 m or longer measuring deviations can occur.

4-wire The inner lead resistance of the connecting wires is negligible.

Sensor limiting error

Class B per DIN EN 60 751

Class A per DIN EN 60 751

It makes no sense to combine 2-wire connection withClass A , since the lead resistance of the cable overrides the higher sensor accuracy.
