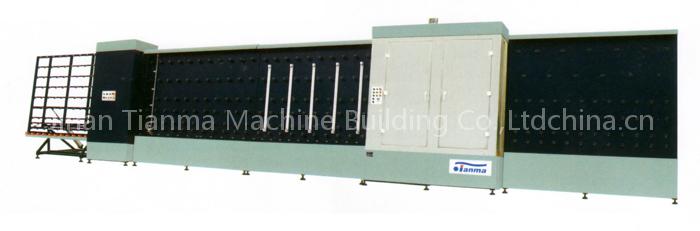

Vartical automatic Insulating Glass Production Line

Vartical automatic Insulating Glass Production Line

Vartical automatic Insulating Glass Production Line

insulating glass machine -------------------------------------------------------------------------------- Features: main steel structure weldments adopts advanced vibration stress relief and natural stress relief which release the interior stress of the material and the welding point at the most, which ensures the long-term mechanical precision.

2.Rinsing and drying station with air cushion is in favor of rinsing 3-12mm thick glass. 3.Washing brushes consists of nylon and a stainless axle. The hair is imported and heat-resistant in favorable of the cleanness and surface protection for glass.

The electric motor for brushes is controlled alone. machine adopts omni-range auto frequency conversion speed regulation.

PLC control system saves waiting time and enhances the production efficiency. machine can keep washing continuously and discriminate the first and the second piece of glass with no waiting time. can process triple insulating glass units with high efficiency. -------------------------------------------------------------------------------- Technique parameter: 1.

Electric power: 13.5KW 3P 380V 50HZ 2. Max glass dimension: 2000×1600mm 3. Min glass dimension: 500×350mm 4. Rinsing speed: 2&&7m/min 5. Transfer speed: 22m/min 6. Max insulating glass thickness:40mm 7. Compress air: flow rate0.8m3/min air pressure:0.8Mpa 8. Water: water electric conductivity≤50us/cm 9. Outside dimension: 13200×2100×2630 mm
