Listing ID#10096165
ModelXTK500
CategoryOther Plastic & Rubber Machinery
injection molding machine
Specifications
- Brand
- LIWEI
- Origin
- CHINA
- Price Term
- FOB
Quick answer
injection molding machine is a Other Plastic & Rubber Machinery product. Key specs — Brand: LIWEI; Origin: CHINA; Price Term: FOB.
Product Description

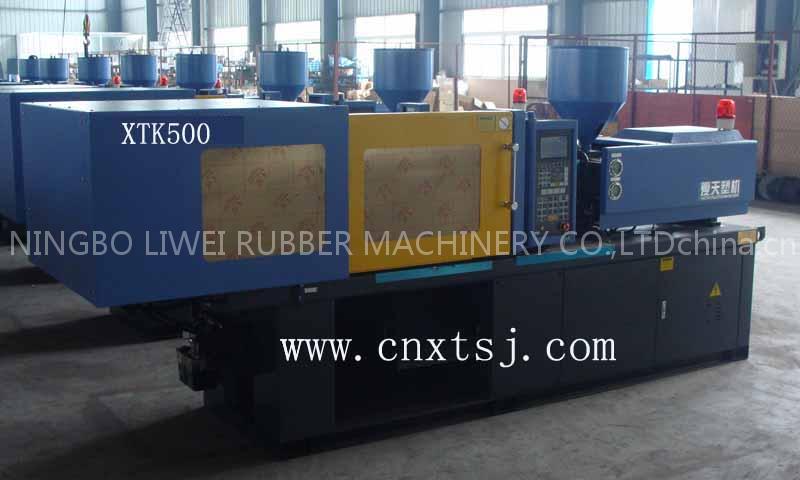

Injection Moulding Machine
Detailed goods description for Model No: XTK500
Detailed goods description for Model No: XTK500
EPT500 | ||||
| INJECTION UNIT | A | B | ||
| SCREW DIAMETER | mm | 28 | 32 | |
| SEREW L/D FATIO | L/D | 21.5 | 20 | |
| SHOT SIZE(THEORETICAL) | cm3 | 63 | 82 | |
| INJECTION WEIGHT | g | 57 | 73 | |
| INJECTION RATE | g/s | 55 | 66 | |
| PLASTICIZING CAPACITY | g/s | 6.9 | 8.4 | |
| INJECTION PRESSURE | Mpa | 168 | 129 | |
| SCREW SPEED | rpm | 175 | ||
| CLAMPING UNIT | ||||
| CLAMPING FORCE | KN | 500 | ||
| TOGGLE STROKE | mm | 245 | ||
| SPACE BETWEEN TIE-BARS | mm | 280x260 | ||
| MAX.MOULD HEIGHT | mm | 280 | ||
| MIN.HEIGHT | mm | 100 | ||
| EJECTOR STROKE | mm | 55 | ||
| EJECTOR TONNAGE | KN | 18 | ||
| OTHERS | ||||
| PRESSURE | Mpa | 16 | ||
| PUMP MOTOR POWER | KW | 5.5 | ||
| HEATING POWER | KW | 3.1 | ||
| (xx) MACHINE DIMENSIONS(LxWxH) | m | 2.9x1.1x1.5 | ||
| () MACHINE WEIGHT(APPROXIMAT) | t | 1.5 |
FEATURES:A inclined line-five points curve toggle structure. Advanced design of computer programs. Using mechanic regulation supports as
