infusion pumps with CE/ISO13485 approval

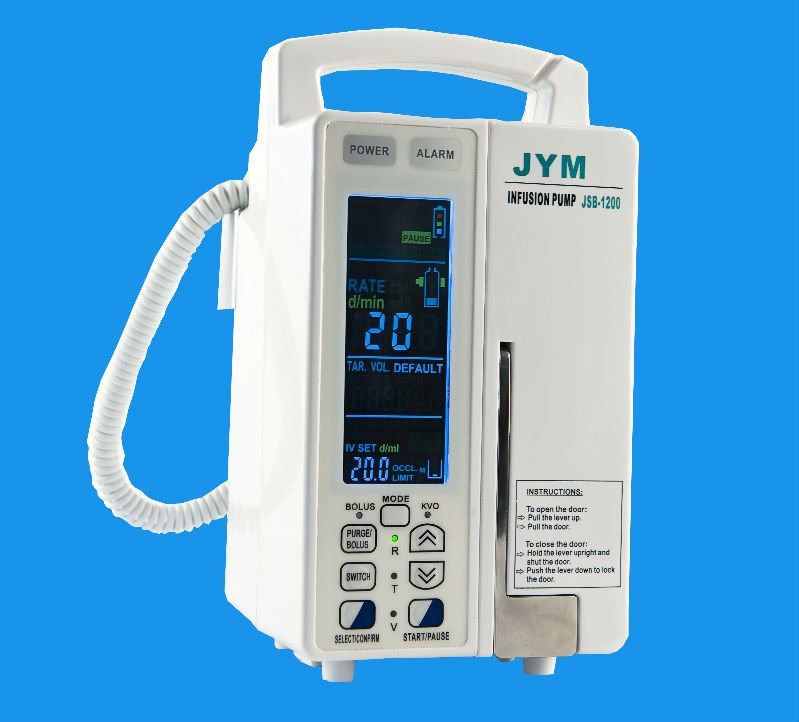

INFUSION PUMP JSB-1200

FEATURES:  Bolus function  LCD, night light  Max rate 1200ml/h  Three working modes  Drop detector (patented)  Light weight, user friendly  Audible and visible alarms  Switch m/l and drop/min freely  English or other language display

TECHNICAL SPECIFICATIONS PARAMETER SPECIFICATION Drop Detector Outside caliper rotary detector (patent) Control Way Drop counting and adjusting the delivery rate automatically Fit IV tubes 20d/ml,60d/ml and other, as well as brown tubes Pump Type Peristaltic finger Accuracy ±2%,when delivery rate ≤25drop/min (drop counting & time control mode) ±3%, when delivery rate >25drop/min (drop counting & time control mode) ±5% (Volume control mode after the correct calibration) Delivery rate range 1-1999min (1min step) Volume limit range: 0-9999ml (1 ml step) Total Volume Range 0-9999.9ml (1 ml step) Purge Rate 600.0ml/h KVO Rate KVO is 1ml/h when the delivery rate≤10ml/h, Otherwise KVO is 3ml/h.

Occlusion pressure Three level setting LOW, MEDIUM or HIGH Alarms Near empty, Syringe empty, Volume complete (when limit volume is set), Occlusion, Syringe loose, Operation error, Low battery, device failures.

Three levels of alarm volume LOW, MEDIUM or HIGH Bolus function Bolus rate:10-1200ml/h,Bolus volume: maximum of 100ml Power source AC power supply: AC 100 to 240V( +/-10%)，50/60Hz; Built-in Lithium Battery: Rechargeable,11.1V,2000mAh.6 hours of continuous operation Accessories: AC power line, Operational manual Protection Class Class I, Type CF,IPX4 Dimension /Net weight 130mm*200mm*230mm , 2.0kg
