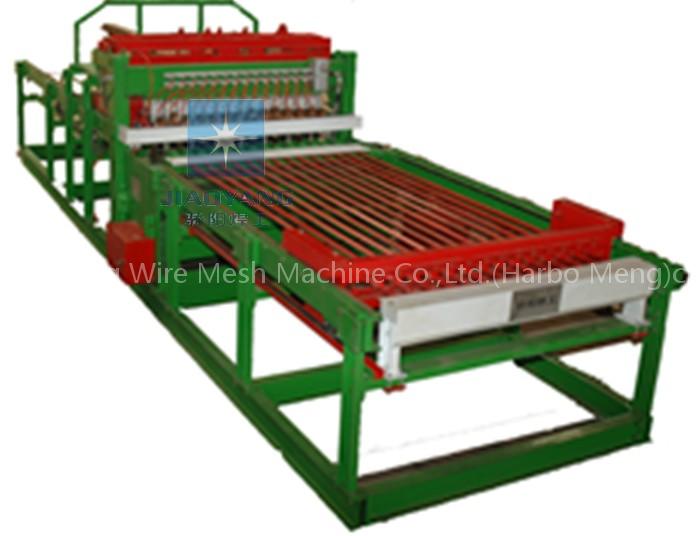

industry mesh welding machine

Function features: cylinder driveThis machine adopts synchronous control technique. The cent-control and welding time are composed of PLC program system . The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable. The welding power comes from the cylinders.

It’s easy to control the welding pressure . The hopper adopts steeping motor . The line wire is feeding by the steeping motor wheels auto, pull the wire net auto .The greatest advantage is that you can adjust the size of the mesh opening .

The line wire and the cross wire are pre-straight and pre-cut .Technical parametersWire diameter 5.0-8.0mm Line wire form Pre-straight &pre-cut

Weft wire distance 100-300mm Weft wire form Pre-straight &pre-cut

Line wire distance 100-300mm Rated voltage 380V

Welding net width 1200mm Rated power 63KVA×7

Welding speed 40times/min Overall dimension 7280×4110×1945mm

No. of line wires 13 Length wire net 1300-2600mm

Application: welded wire net for mine timbering and construction.
