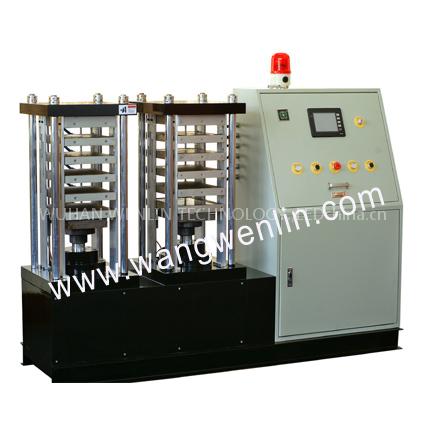

identification card making machine banking card laminator

Product introduction: This high effecient equipment was made for professional manufacturer of personality cardsIt is low wastage rate ,easy to operate the professional smart card automatic laminator(Smart card making equipment)it also can satisfy the PVC card company and PVC card factory enough to produce the second generation identification cards and top quality certificate cards,banking cards,one card solution for bus,high way,social insurance card and so on.

It is good enough for 8K,16K offset printing machine users . 1.Simple ,vividly man-machine screen,easy to operate international standard oil cylinder,balance pressure,low noise,small vibration adopts imported PLC controlling system,touch-screen , without complex operating PCB table .

4.Stable Working ,automatic alarming 5.Single cylinder pack out,take apart for cleaning basin, saving energy and high effeciency,will never jam 6.Steps of pressure choosing and output,to meet kinds of technology's demand.

7.Temperature and pressure both can set and balance automatically 8.Button and touch screen double switch off can ensure the working procedure safety.

9.Suitable for laminating and processing kinds of cards(special for contactless IC card laminating and processing ) Technical parameter: Smart card automatic laminator(Smart card making equipment) Model : WL-FA3000 PLC Power Supply: 380V　50HZ Power : 14KW Pressure method: Hydraulic Pressure steps: Heating :5 steps ,cooling :1 step Controlling method: PLC Pressure bound : 0-16 mpa　　precision:±1mpa Temperature bound: 0-200　Precision:±2 Time bound: 0-9000 Seconds Precision:±1Second Laminating area: 210mm*297mm Production speed: more than 2000cards/hour Laminating layers: Five heating and five cooling Cooling method: Water cycling Heating method: Imported electric heating element Outline dimension: L1780mm*W510mm*H1480mm Weight: 1500kg
