Listing ID#10209196
ModelHAPE-307
CategoryBusiness Services

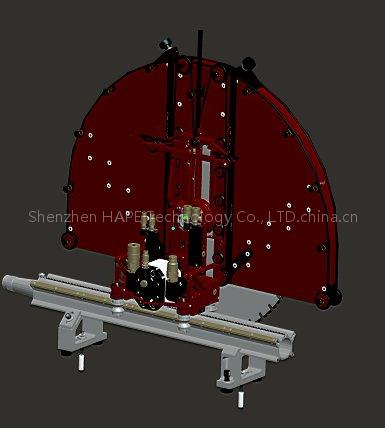

hydraulic wall saw
Specifications
- Brand
- 深圳市汉é¹ç§‘技有é™å…¬å¸
- Origin
- ADD：1/F,Block B,the Second Ridgepole,No.2 Plant
Quick answer
hydraulic wall saw is a Business Services product. Key specs — Brand: 深圳市汉é¹ç§‘技有é™å…¬å¸; Origin: ADD：1/F,Block B,the Second Ridgepole,No.2 Plant.
Product Description
| TechnicalData | |||
| HYDRALIC SYSTEM AND CONTROL | HAPE-107 | HAPE-207 | HAPE-307 |
| HYDRALIC SYSTEM AND CONTROL on the HYDRALIC SYSTEM | HAPE-107A | HAPE-207A | HAPE-307A |
| Motor power | 21KW | 34KW | 45KW |
| Hydraulics | |||
| 2feed circulations | gear pump | gear pump | gear pump |
| Main circulations | gear pump | gear pump | gear pump |
| Pressure stage | 1 | 3 | 3 |
| Power | |||
| Step1 | 30L /min by 250 bar | 40L /min by 250 bar | |
| Step2 | 51L /min by 250 bar | 51L /min by 200 bar | 68L /min by 200 bar |
| Step3 | 81L /min by 150 bar | 108L /min by 150 bar | |
| Electricity | |||
| Electric-motor,air cooled | 1 | 2 | 2 |
| Voltage | 200V/230V/380V400V/480V | 200V/230V/380V400V/480V | 200V/230V/380V400V/480V |
| Frequency | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
| Power(380V) | 28A | 45A | 60A |
| Turn phase | automatic | automatic | automatic |
| Dimensions | |||
| Length(without handel) | 643mm | 681mm | 728mm |
| Width | 620mm | 620mm | 670mm |
| Height(without handel) | 903mm | 903mm | 1070mm |
| WeightHAPE-107/207/307 | 180kg | 200kg | 275kg |
| Weight107A/207A/307A | 150kg | 170kg | 235kg |
