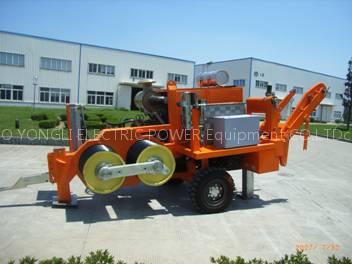

hydraulic puller is a Hydraulic Tools product. Key specs — Brand: YONGLI; Origin: china.
Product Description
SA-YQ180 order number :07051 Essential parameter Maximum linepull (kN):180 Continuous linepull (kN):150 Maximum linespeed (km/h):5 Bullwheel bottom of groove diameter(mm):Φ630 Bullwheel grooves number: 9 Maximum suitable steelrope diameter (mm): Φ24 Maximum through connector diameter (mm): Φ63 Engine power /speed (kW/rpm):209/2100 Dimensions (mm):5500×2170×2570 Weight (kg): 7500 Feature : 1. infinitely variable speed and linepull control ,the pull in the rope can be read on the line pull gauge .
2. the for conductor-stringing operation can preset ,automatic overpull protection system . 3. Spring applied-hydraulic released brake acts automatically in case of hydraulic failure to ensure safety . 4. hydraulic pullrope pinch device ,convenient for replacing reel . 5. attached reel winder with automatically level wind .load and unload conveniently ..
Main component : 1. Engine :Cummins (USA)water-cooled diesel engine . 2. main variable displacement pump ,main motor :Rexroth (BOSCH) 3. Reducer : RR (Italian ) 4. Main hydraulic valves: Rexroth (BOSCH) 5. Radiator :AKG 6. Hydraulic instrument :WIKA Mating with model GSP1600 drum (order number :07125D)
