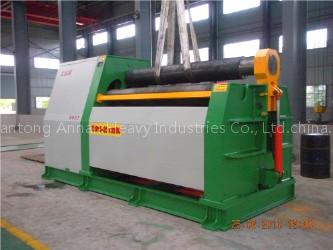

hydraulic four-roller plate bending machine
Specifications
- Brand
- CAN
- Origin
- China
- Price Term
- FOB
hydraulic four-roller plate bending machine is a Other Farm Machines product. Key specs — Brand: CAN; Origin: China; Price Term: FOB.
Product Description
MODEL | TXW12-25*2500 |
Maximum width of bending plate | 2500 mm |
Maximum thickness of bending plate | 25mm |
Maximum thickness of pre-bending | 20mm |
Diameter of upper roller | Ф390mm |
Diameter of bottom roller | Ф360 mm |
Diameter of side roller | Ф300 mm |
Yield strength of plate | 245 MPa (all our machine models are based on the 245Mpa, but the 260Mpa is also ok for our machine, please do not worry about it ) |
Min diameter when full loading | AboutФ600mm (full-loading, namely max thickness and max width ) 12mm (Min. inside diameter 450mm, which is no problem) |
Plate bending speed | 4m/min |
Main drive | 22kw |
voltage | 400v 50HZ (it is no problem, we shall purchase the electric parts according to your request ) |
Painting | Shot blast or sand blast Colors(according to the customer&rsquo requirement) Machine body Hydraulic Jackets Balance device Painting thickness: 200 Micron min |
Remark: please check the above information to make sure we quote the right machine. Please also check the minimum inside diameter, voltage and frequency to avoid possible mistakes. Thanks. | |
we are leading manufacturer of four-roller plate rolling machine in China. If you are looking for the plate rolling machine, please feel free to contact us.
