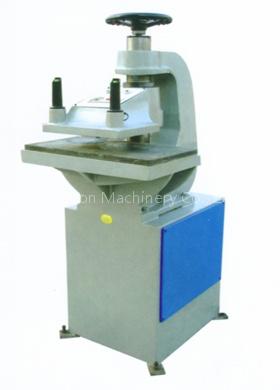

hydraulic Swing Arm Cutting Machine

Detailed DescriptionUCLP3-80 Hydraulic Swing Arm Cutting MachineUsage and characteristics1. The machine is applicable for cutting on wallet assembly, mobile case, small toy assembly, decoration and portfolio accessory etc. nonmetal materials with small die cutter.2. Flexible rotation of swing arm for convenient operation and material selection.3.

Adopt double hand operation switch to guarantee the safety of operators.4. The height of swing arm is regulated by the handwheel at the top of the machine and the cutting stroke is regulated by the timer so as to easily obtain optimal cutting position to improve work efficiency and prolong the service life of die cutter and padding plate.5.

Use fly wheel inertia stored energy to save energy.Main technical parametersMaximum cutting force 12Tons

Distance from upperpressing board to worktable 50-110mm

Size of the upper pressing boardCutting area 450×330mm(swing arm) 800×400mm(under the table)

Main motor power 0.75Kw

Electric Supply Voltage 3x440/400/380/220/200V ,50/60 Hz

Total weightapproximate 500kg

Remark:We can make the machine according to your specifical order ,for example the color,the motor information ,the working table etc.
