hung-up solar system

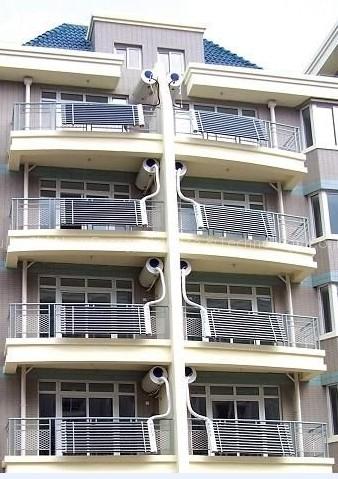

1,Heat collector mounted at balcony external wall handrail,perfectly in harmony with building ,water tank mounted at internal or externalbalcony wall,pipelone shouldbe insulated by heat preservation material .

2,Adopting pressure circulating model,hot water outlet by pressuretank is always full ,needn’t feeding water manually , turning onthe tap then hot water spraying free from pre-heate &strong water flowingensure comfortable bath

3,By balcony area limitation ,water tank capacity80L,100L,120L.villa model solar system canbe choosenif hot water capacity requirement big Wall –upsolarsystem include 2 types

Natural circulating Wall –upsolarsystem,using cold water at bottomhot water at the topping principle (cold water &hot water difference gravity)combine with special organization ,make cold & hot water accelerate natural circulation .

Twice heat exchange Wall –upsolarsystem (balance heat pipe +siphon heat pipe),heat collect section,transmittance section without water ,heat collection section is balance heat pipe,horizontal placed ,heat pipe transfering,fast speed ,high efficiency .transmittance section& heating setting is aintegral vacuum heat tube settings,Using siphone principle realize heating effect.

Vacuum tube :Φ58mm×1800mm
