Listing ID#10061850
ModelCZQ0618A
CategoryOther Farm Machines

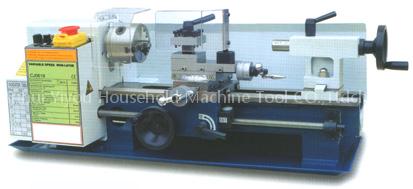

household machine
Specifications
- Origin
- chizhou anhui China
- Price Term
- FOB
Quick answer
household machine is a Other Farm Machines product. Key specs — Origin: chizhou anhui China; Price Term: FOB.
Product Description
| 1. | Swing over bed | 180mm |
| 2. | wing over cross slideS | 110mm |
| 3. | Distance between centers | 350mm |
| 4. | Spindle taper | MT3 |
| 5. | Tailstock taper | MT2 |
| 6. | Chuck diameter | 80mm |
| 7. | Spindle bore | 20mm |
| 8. | Cross slide travel | 65mm |
| 9. | Top slide travel | 35mm |
| 10. | Range of metric threads | 0.5-2.5mm |
| 11. | Range of imperial threads | 12-52TPI |
| 12. | Spindle accuracy | 0.01mm |
| 13. | Spindle speed | 0-2500RPM |
| 14. | Power of motor | 500W |
| 15. | Vol./Freq | 230V/50Hz or 120V/60Hz |
| 16. | Net weight | 40Kg |
| 17. | Gross weight | 45Kg |
| 18. | Packing size | 810*305*315mm |
