hosiery machine

main feed plus five colors feeds in the same course. ( )One main feed plus four colors feeds in the same course. ( )2. Possibility of 11-13 color plus ground or the one sock.3. Drumless,fully electronic control system.4. Exclusive inner cam block system for high speed.5. Stepping motor for elastic yarn and stitch cam control.6.

Electro-pneumatic yarn finger and cam control.7. Pattern Depth up to 1,200 courses.8. Multiple stop motion sensors in case of error.9. Automatic re-cycling oiler, counter, and reset function.10. Attached floppy disk driver (Compatible with MS-DOS and WINDOWS)11. Available in 380V.3phase 50/60Hz.12. Fully A.C Servo motor adopted.13.

Minimized and easy operating function.14. Internal UPS can support continuous knitting.15.

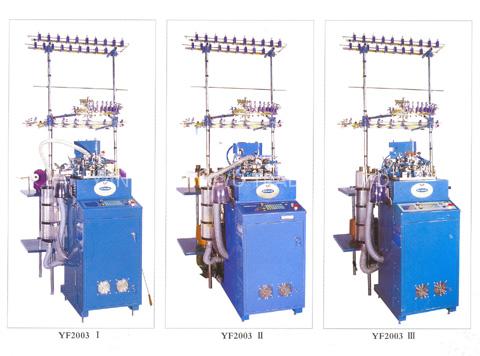

Graphic type LCD adopted.MODEL YF2003　I，IICYLINDER　DIAMETERS 3 1/2"　　3 3/4"NEEDLE　COUNTS　　　　84～144N(88-200)R.R.M 300～330(250-280)DRIVE　CONTROL SERVO DRIVEDRIVE　MOTOR "POWER REQUIRED" 0.80KWFAN　MOTOR 0.75KWCONTROL BOX 0.80KWFLOOR SPACE（W×L×H） 1500*1200*2400NET　WEIGHT 380KG(380)GROSS　WEIGHT 440KG(440)PACKING DIMENTION（W×L×H） 1150×1050×1750
