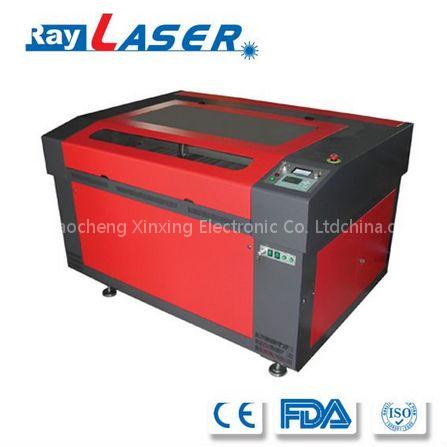

high speed laser engraving and cutting machine
Listing ID#10222582
ModelRL90120HS
CategoryOther Laser Equipment

high speed laser engraving and cutting machine

Specifications

Brand
Raylaser
Origin
China
Price Term
FOB
Request Quote
Quick answer

high speed laser engraving and cutting machine is a Other Laser Equipment product. Key specs — Brand: Raylaser; Origin: China; Price Term: FOB.

Product Description

Suitable for cutting and engraving

Offline control system which can not only work without computer, but also connect to U disk, USB communication

Optional auto up & down work table, it is suitable for different thickness material cutting and engraving

Red light positioning system realizes the exact position without laser

.

The electrical ability is stable, the engraving speed is high, and the precision is high.

Applicable materials:

Non-metal materials such as double color board, Plexiglas(organic glass), glass, bamboo and wood, rubber sheet, marble, granite and tiles, leather, PVC, crystal, resin, boulder, etc.

Applicable industry:

Billboards/advertisement, logos, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, cloth and leather, bag, embroidery, decoration and upholster industry, fabric toy, furniture, reticule, advertising middle density board, model, etc.

RL6090HS

RL90120HS

Standard laser power

60w

80w

Optional laser power

80w

100w

120w

Laser tube

CO2 LASER TUBE

Engraving Area

600×900mm

900×1200mm

Maximum Height of Materials to Engrave

550mm Up and Down adjustable by Motor

Gross Power

1000w

1100w

1200w

Software

Conversion output : Art Cut, Photoshop

Main Graphic format supported: PLT/DXF/BMP/AI

Direct output : CorelDraw, AutoCAD, Laser cut

Machine Size

1480×980×1100mm

1780×1280×1200mm

Packing Size

1770×1220×1290mm

1980×1480×1380mm

Engraver for format supported:

Rotary clamp is optional and used to engrave on curse surfaces

Cutting Ability

80w Laser TubeAcrylic Max 20mm

Engraving Speed

Max 1000mm/s

Power Supply

220V±10% 50HZ 110V±10% 50HZ

Cooling System

Water Cooling

Optional Spare Parts

Rotary Clamp : used to engrave on curse surfaces

Water Chiller
