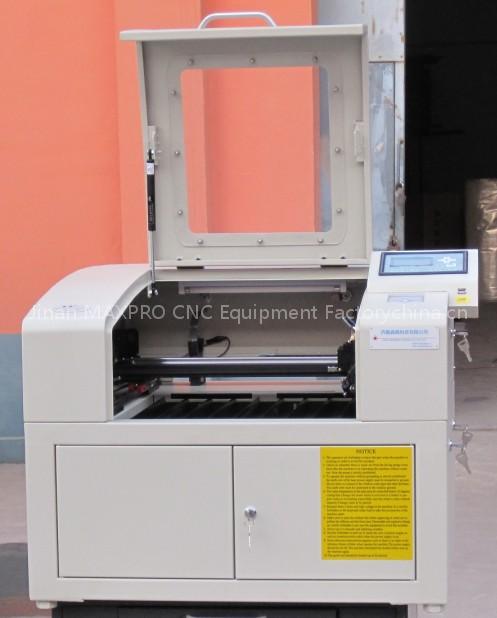

high precision of MaxPro4050 mini laser engraver
Specifications
- Brand
- MAXPRO
- Origin
- Chian Mainland
- Price Term
- EXW
high precision of MaxPro4050 mini laser engraver is a Electronics Production Machinery product. Key specs — Brand: MAXPRO; Origin: Chian Mainland; Price Term: EXW.
Product Description
1. Japanese technical engine running, making sure the products to run at high
speed and high precision.
2. The original binding beeline lead rail, the mechanic is running well and stable.
3. Channel feeding, the feeding can be unlimited.
4. The body of the machine adopts high quality aluminum, professional model and
has the specification of strong and not easy for distortion.
5. The main parts of the electrical line adopts the imported materials, the mainly
controlled CMOSchip adopts double face CPU.
Specification of Laser Engraving System
Model | MP-450 Laser Engraving System |
Processing area | 400*500mm |
Laser tube | 40W |
Engraving speed | 1-60000mm, 1*164 Foot /min, |
Laser type | Sealed CO2 laser tube |
Minimum shaping character | Chinese :2*2mm; letter: 1*1mm |
Support graphic format | DST, PLT, BMP , AI |
Cooling system | Water cooling and protection system |
Controlling software | DSP control system |
Driving system | Stepper |
Power supply | 110-220V/50HZ |
Operating temperature | 5 – 40 centigrade degrees |
Operating humidity | 5%-95% Free of condensed water |
Gross power | <1000W |
Operating Syetem | 98/ME/2000/XP |
Power supply | 220V/50HZ |
Gross power | 300W |
Application | Stamp,Craft,Advertisement |
Package | Fumigation Free wooden case or carton box |
