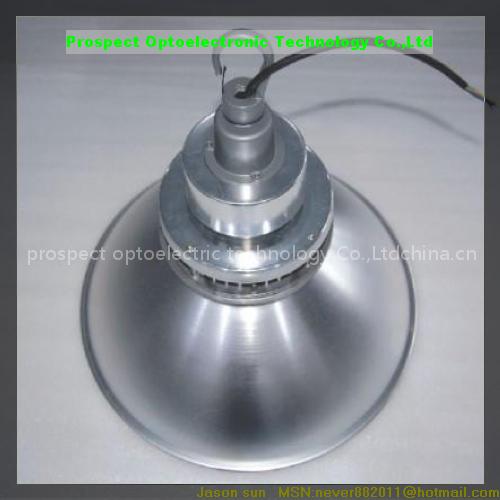

high power led mini lamp

Features 1, Using our own package single high power LED 10w-50w as the light source, this light use multi-chip integrated single module design, selecting importer high brightness semiconductor chips with high thermal conductivity, light decay, pure light color and no ghosting features; 2, with red, green, blue, yellow, white and other colors, suitable for high-power landscape lighting; 3, Led is closely connected with the shell, which through shell wing and air convection cooling.

The shell is shaped by die-casting aluminum alloy, which can effectively cooling and ensure the life of that light source; 4,5mm high intensity tempered glass and light body of the perfect combination, making the lamps can be used in high-humidity environment; 5, Light body is using anti-aging silicone rubber sealing tape and its surface has done cathode oxidation and spray treatment, the whole light meet the IP65 standard; 6,Using German imports of high-purity aluminum reflector, effectively improve the reflectivity, and to ensure that the luminous flux output, target control of the LED light from within the need to improve the uniformity of lighting the light effects and utilization of light energy, highlighted the energy-saving advantages of LED lighting industry; 7,No delay when starting, it is up to normal brightness once powered, no need waiting, switching frequency of up to one million times; 8, Installation fast, flexible, adjustable to any angle, versatility, wide range of applications green environmental protection without pollution; 9,Cold light source design, no heat radiation, there is no any harm for the eyes and skin, without lead, mercury and other pollution elements to achieve a true sense of the green energy-efficient lighting; 10,It is combined with solar energy is a perfect partner, giving full play to work with low voltage LED current advantages of energy-saving, solar photovoltaic panels and LED light sources combined together, to achieve the best cost performances and high reliability for our customers.

Item LED power Working voltage Power factor(PF) LED luminous efficiency Initial luminous flux

YJ-GKD-1068-100 100W AC(85V-265V) /frequency(50~60Hz) >0.92 120lm/W 12000LM

Item Luminaire efficiency Color index(Ra) Correlated color temperature Illuminant service life Net (kg)

YJ-GKD-1068-100 >90% Ra>80 2700K-7000K >50000Hrs 6.0
