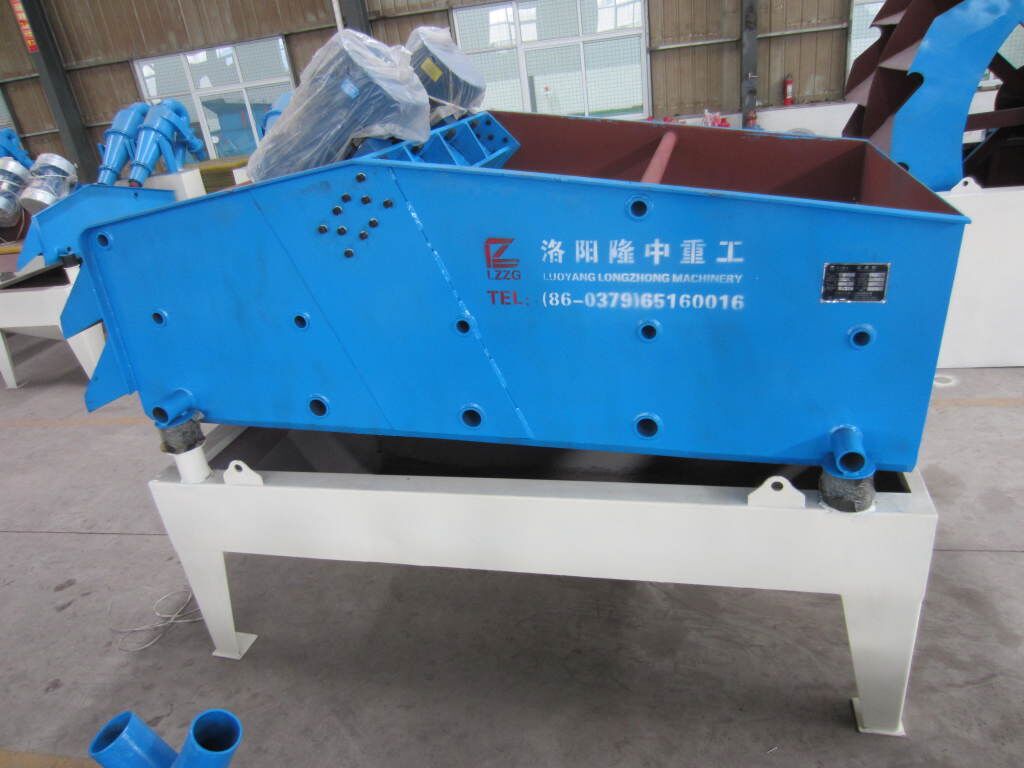

high dehydrating ratio dewatering screen

Working principle: Dewatering screen adopts dual-motor self-synchronization technology. Motors coordinate with universal eccentric and adjustable amplitude vibrator. When motors start to work, centrifugal forces which generate by the eccentric models will superposition themselves and forming a single direction vibration.

The high frequency vibration drive of the screen will line move back and forth in line repeatedly. So the sand will be dehydrated and filtered.

Features: 1. Advanced structure, light weight, high dehydrating ratio with new type vibrating motors. 2. Simple structure, easy maintenance. 3. Cross beam and screen body connect with high strength bolts, no welding and easy to remove and maintenance. 4. Polyurethane screen (PU) high screening ratio, big capacity, long service life and no blocking. 5.

Widely used, less replacement parts.

Specification: Model Screen area (m²) Power (kw) Capacity (m³/h) Feed size (mm) Weight (t) Overall dimension (L*W*H)(mm) TS0820 1.5 2*0.75 5-10 ≤10 0.8 2300*1100*745 TS0920 1.8 2*1.1 10-20 ≤10 1.2 2300*1200*750 TS1020 2 2*1.5 20-30 ≤10 1.6 2300*1300*750 TS1225 3 2*2.2 50-80 ≤10 2.1 2800*1500*800 TS1530 4.5 2*3 100-120 ≤10 3.2 3300*1800*800 TS1845 8.1 2*5.5 150-200 ≤10 3.5 4600*2455*2100 Application: Due to its unique function, the machine is widely used in slime recycle, coarse filter and fine material recycling.
