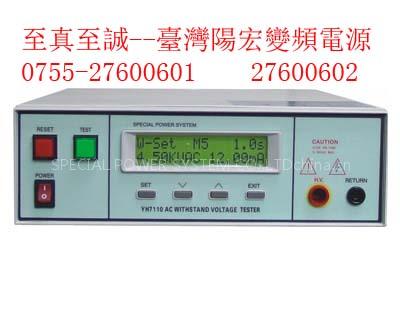

hi-pot tester

Programmable AC/DC Hi-Pot& Insulation Tester Details

Insulation and pressure-proof test instrument

7100 Series MRO-7100

Type FunctionFunction

YH-7110 AC Withstand Voltage Tester

YH-7120 AC/DC Withstand Voltage Tester

YH-7112 AC Withstand Voltage /Insulation Tester

YH-7122 AC/DC Withstand Voltage/Insulation Tester

YH-7130 AC/DC Withstand Voltage/Insulation Tester

Product Features Light, compact and portable AC pressure-proof testing 0-5KV DC pressure-proof testing 0-6KV Able to sense voltaic arc Digital keystroke input setting.

Software modification Input voltage can increas automatically according to the setting insulation resistance testing1-1000M∩(customization) 5 sets of testing conditions of automatic memory Can be connected to YG7305 ground resistance test set for the purpose of automatic testing.

Following tests can be achieved: W,1,W-1,1-W,AC&DC&IR Application Electronics, electrical phase, transformer, electrical appliance, requested equipment for lighting products testing quality control, projects, EMI/EMC labs, requested equipment that needs to apply for national safety standards Practical application The testing voltage for dielectric strength testers depends on the market that your product is going to enter into.

You must comply with safety standard and regulations of the import control laws of the country. The safety standards specify the voltage and time for testing. The ideal condition is to ask your customers for relevant testing requirements. The normal voltage for testing is as follows: working voltage is from 42V to 1000V.

The testing voltage is two time the working voltage with an additional of 1000V. For this testing voltage, it should take 1 example, for a product that works at 230V, its testing voltage is 1460V. Testing voltage should be increased if the time is deducted.
