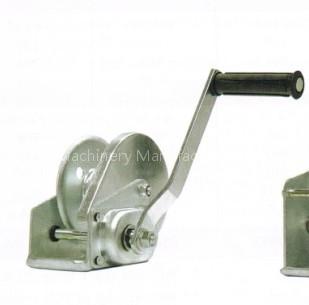

hand winch
Specifications
- Brand
- hand winch&hand puller&ratchet buckles
- Origin
- china
Quick answerhand winch is a Metallic Minerals product. Key specs — Brand: hand winch&hand puller&ratchet buckles; Origin: china.
Product Description
| |
| Stock No. | 500501200 | 500501800 | 500502600 | | Model | 1200LBS | 1800LBS | 2600LBS | | Safe working load(lbs) | 1200 | 1800 | 2600 | | Test load | 8 | 12.13 | 17.64 | | Gear ratio | 4.2:1 | 5:1 | 10:1 | | Dimension(mm)-A | 156 | 203 | 216 | | Dimension(mm)-B | 184 | 256 | 293 | | Dimension(mm)-C | 88 | 107 | 127 | | Dimension(mm)-D | 217 | 319 | 319 | | Dimension(mm)-E | 27 | 27 | 27 | | Dimension(mm)-F | 272 | 283 | 305 | | Dimension(mm)-G | 51 | 60 | 63 | | Dimension(mm)-H | 109 | 109 | 109 | | Net weight(kg) | 3.7 | 7.7 | 10.1 | | Volume(mm) | 160×160×220 | 350×200×230 | 350×240×240 | | Rope length(m) | 4mm wire rope 35m,nylon rope8m | 5mm wire rope 50m,nylon rope10m | 5mm wire rope 50m,nylon rope10m |
|
